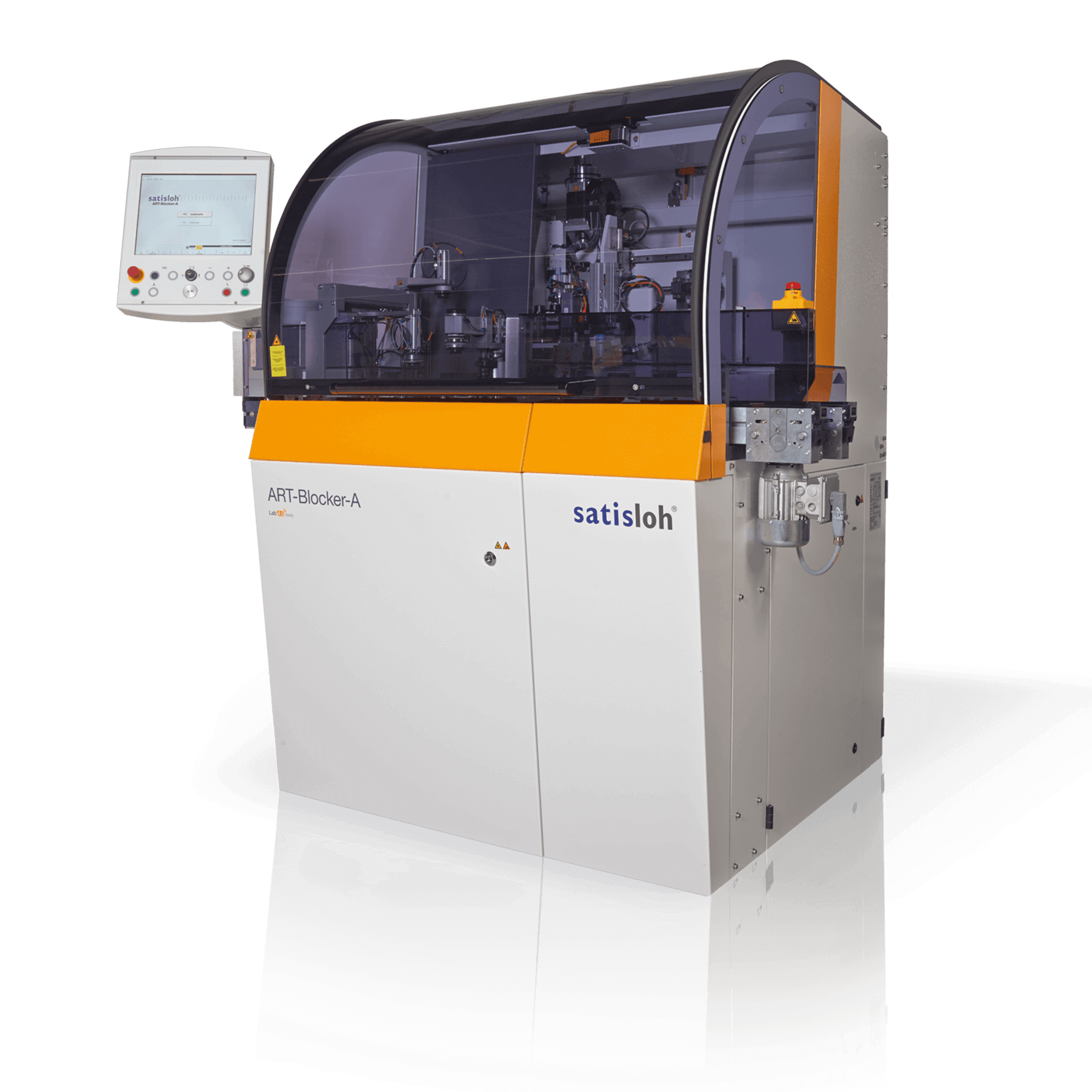

Fully automated alloy-free lens blocking

ART, the non-alloy lens blocking technology, employs reusable block-pieces. The connection between lens blank and block-piece for optical lenses is made by UV-curable adhesive. The lens blocker itself features several benefits due to ART:

  • First of all, the ART-Blocker-A does not require any tape or any block rings.
  • Secondly, the automated lens blocker does not require any cooling time after blocking.
  • The availability of multiple block-pieces and diameters optimizes performance.
  • The lens blocking system does not need manual handling and front-side protection.
  • Lastly, the automated lens blocker includes imaging and probing. Front side probing enables re-calculation of back curve for most accurate optical power.

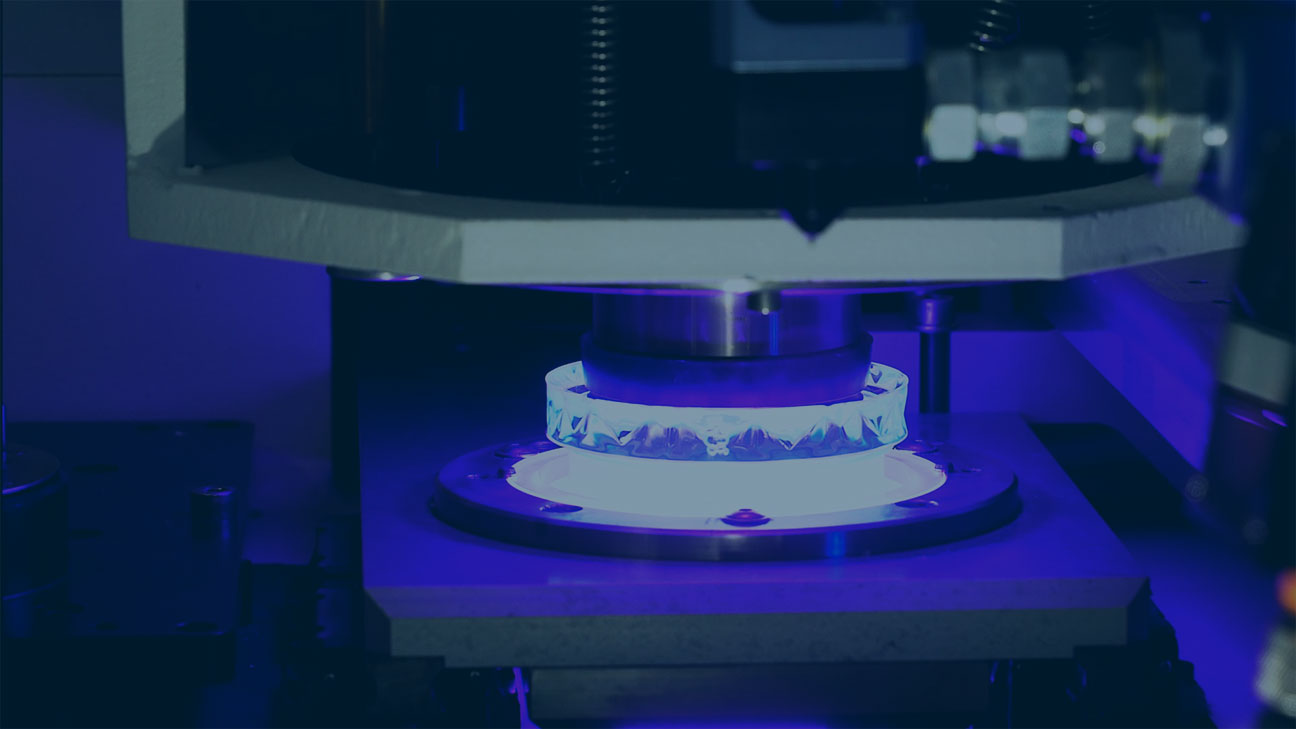

Video

5 reasons why your lab should move to ART

Switch to Satisloh's Alloy Replacement Technology (ART) for an eco-friendly alternative to traditional alloy blocking. ART eliminates the need for frontside protection tape, reducing environmental impact and ensuring a safer workplace. Make the move now!

Read more

Tech Specs

Productivity: Up to 100 lenses/hour
Working range: Lens diameter 58 – 85 mm Lens thickness up to 30 mm Plano up to +15 dpt. base curve Prism up to 5° Progressives, multi-focals, single vision lenses
Lens material: All standard organic materials, photochromic and polarized blanks
Dimensions (wxdxh): 1215 x 1236 x 1907 mm / 48 x 49 x 75 inches, without chiller
Weight: 880 kg / 1940 lb

All technical data subject to change without notice. Verify details with Satisloh.
