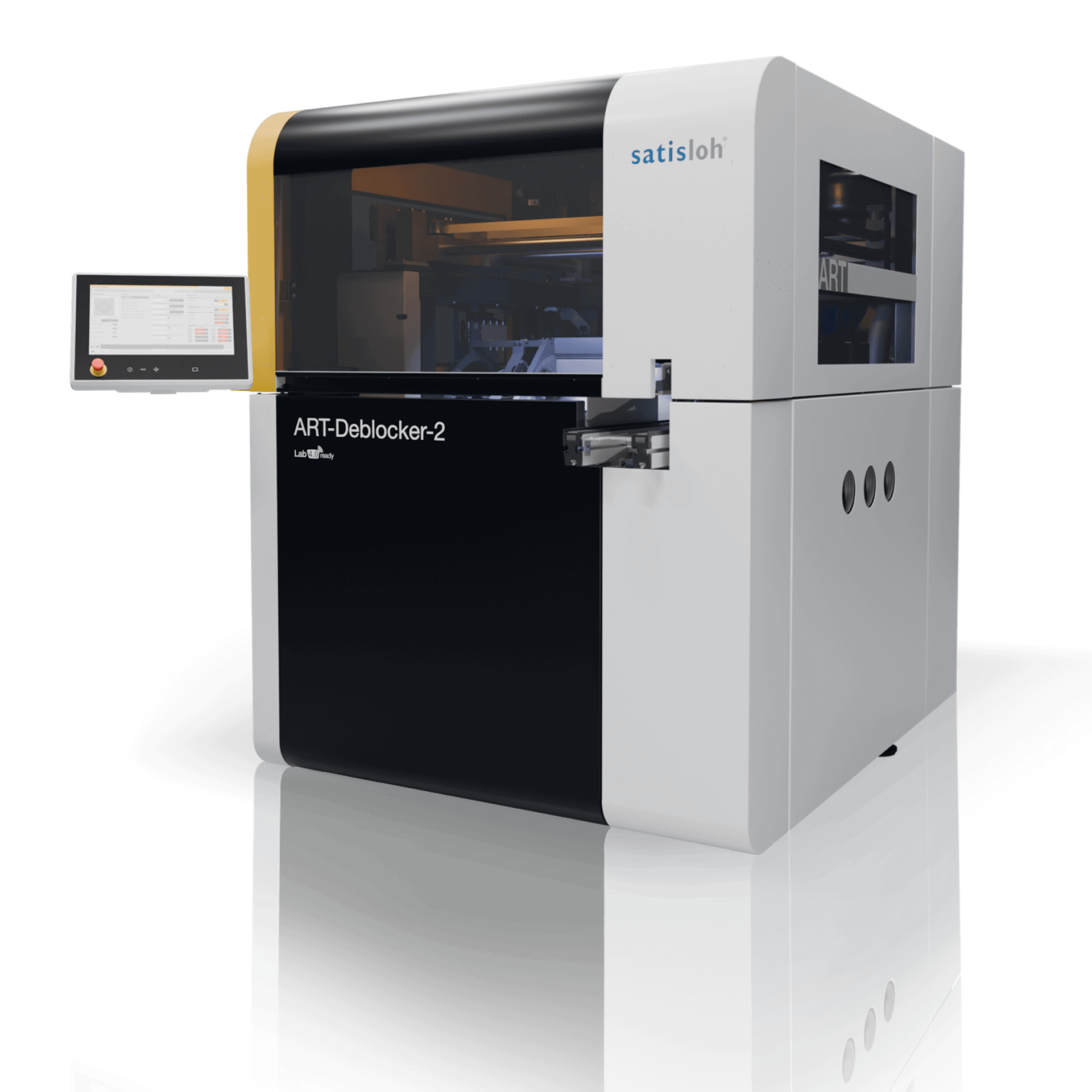

Fully automated lens surface deblocking

The ophthalmic ART-Deblocker-2 enables labs to fully automate their surfacing operation.

Basically, ART-Deblocker-2 features Alloy Replacement Technology and supports all the positive aspects of non-alloy production. In other words, it features environmentally-friendly production, time & quality savings, and compatibility with other manufacturers’ equipment.
Equally important, the machine itself dries both sides of the lens,so they are inspection ready.
In addition, the lens deblocking system sorts blocks back in job tray after the deblocking process.
Also to mention, it needs up to 18% less floor space than its predecessor.
Last but not least, side, back and front doors can be fully opened for best accessibility and easiest serviceability.

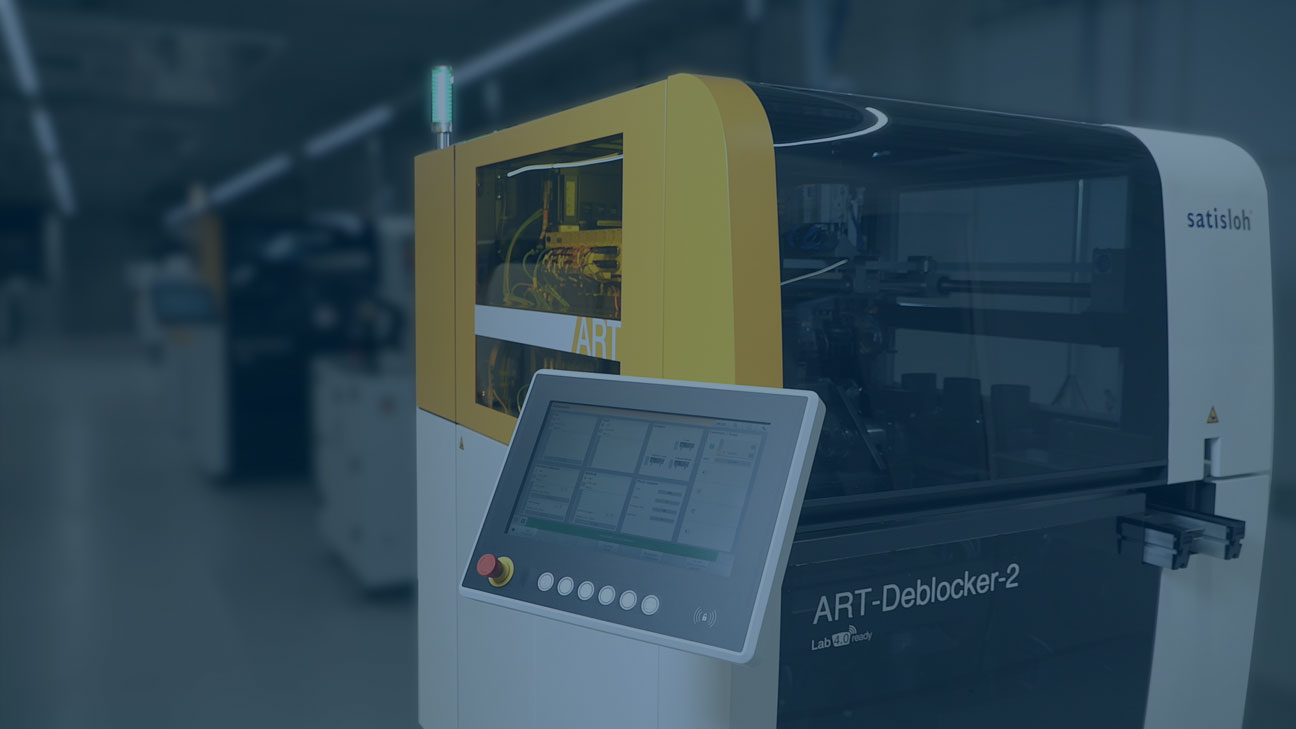

Video

5 reasons why your lab should move to ART

Switch to Satisloh's Alloy Replacement Technology (ART) for an eco-friendly alternative to traditional alloy blocking. ART eliminates the need for frontside protection tape, reducing environmental impact and ensuring a safer workplace. Make the move now!

Tech Specs

Productivity:	~ 200 lenses/hour
Working range:	Lens diameter 50 – 85 mm Lens thickness up to 30 mm Plano up to +18 dpt base curve Prism up to 5.5° Progressives, multi-focals, single vision lenses
Lens material:	All standard organic materials, photochromic and polarized blanks
Dimensions (wxdxh):	1502 x 2078 x 2140 mm / 60 x 82 x 85 inches, without water-filtration system and chiller
Weight:	1900 kg / 4190 lbs

Additionally required

An external water-filtration-system (WFS) for best processing and to reduce water usage by up to 80%.

All technical data subject to change without notice. Verify details with Satisloh.
