Small-batch AR & mirror coater

Capacity: up to 30 lenses/batch Ø70 mm with full dome.
Offers multiple lens coating process applications: Anti-Reflective and/or mirror coating on organic & mineral eyeglass lenses via thermal evaporation process (PVD).
Deposition of multiple coating process features in a single run.
Simplified electron-beam emitter for easy maintenance & increased reliability.
Ion-beam assisted deposition for best layer adhesion and hardness.

Coating processes for Rx lenses

Top coating - Hydrophobic, Super Hydrophobic & Super Hydro/Oleophobic
AR coating - Ultimate, Premium, Performance, Classic, Multicote X
Mirror coating - Spectraflex X
Specialized coating - Protect-Blue, Protect UV, Protect Complete & Protect High Contrast

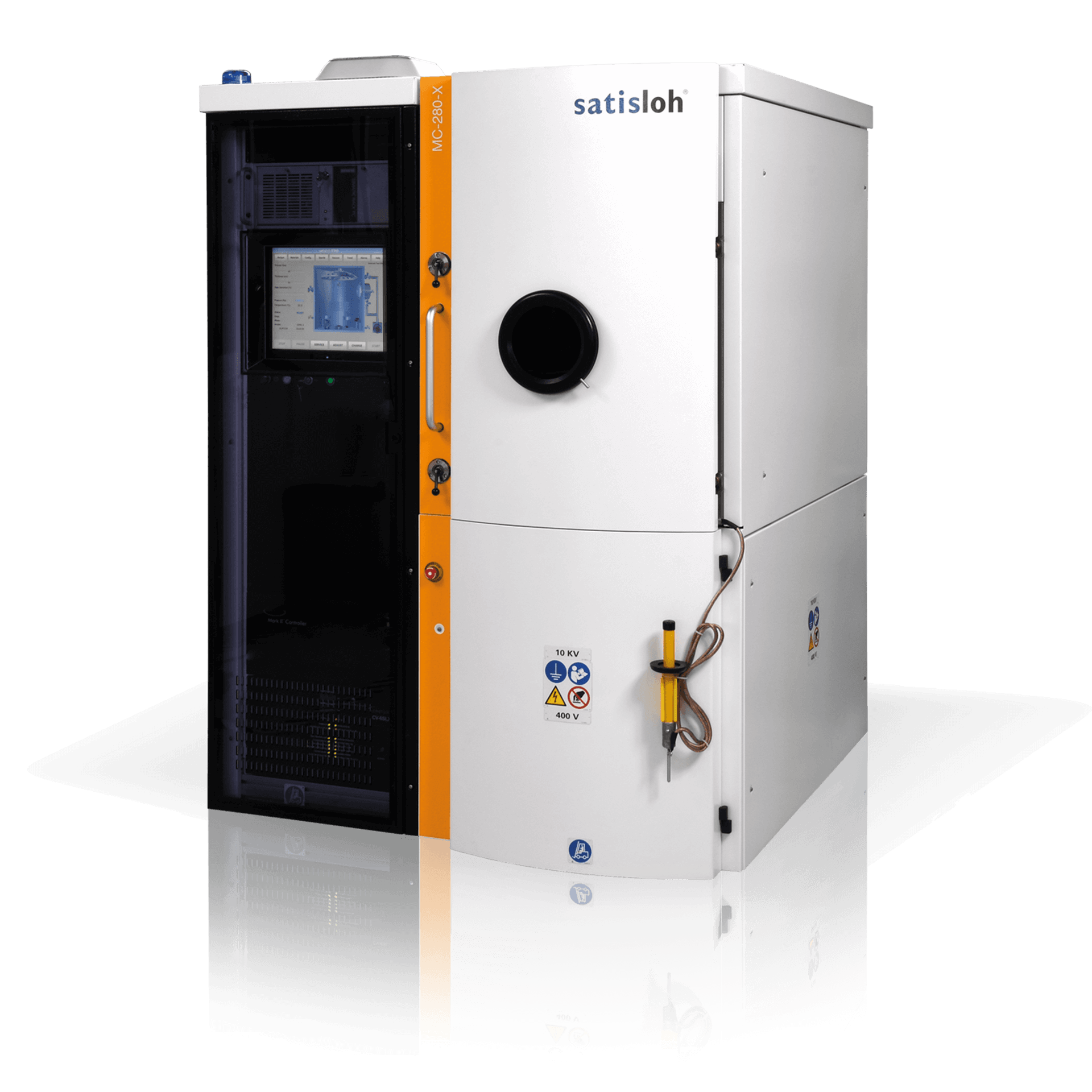

MC-280-X small vacuum box coater, can be customized to meet your product, process and production requirements.

Perfectly matched Satisloh ophthalmic lens coating processes, consumables, and box coaters guarantee best coating performance.

Tech Specs

3-sector dome lens capacity: (ringless sector on request)	Ø 65 mm up to 30 lenses Ø 70 mm up to 27 lenses Ø 75 mm up to 24 lenses Ø 80 mm up to 24 lenses
Ringless full dome lens capacity:	Ø 70 mm up to 30 lenses Ø 80 mm up to 26 lenses
Fast-flip over lens capacity:	Ø 65 mm up to 14 lenses Ø 70 mm up to 14 lenses Ø 75 mm up to 14 lenses Ø 80 mm up to 14 lenses
3-Sector dome for Express AR & Metro Lab:	18 positions for OPS ART block-pieces
Lens material:	CR39, Polycarbonate, High Index, Acrylic, Photochromic, Mineral glass
Dimensions (wxdxh):	1453 x 1481 x 2124 mm / 57 x 58 x 84 inches
Weight:	1150 kg / 2535 lb

All technical data subject to change without notice. Verify details with Satisloh.
