Automated lens debris filtering & coolant management

Available in different configurations, designed to support up to 6, or more digital lens generators:

  • Microseparator® HC2 – Automated coolant cleaning system for up to two lens generators with any mixture of organic lens materials. Specifically designed for Satisloh’s VFT-orbit-2, the HC2 can process the debris of 220 lenses per hour. Use with Integrated or Standard Pump Station to maximize production space by relocating the coolant cleaning system to a remote location in your facility.

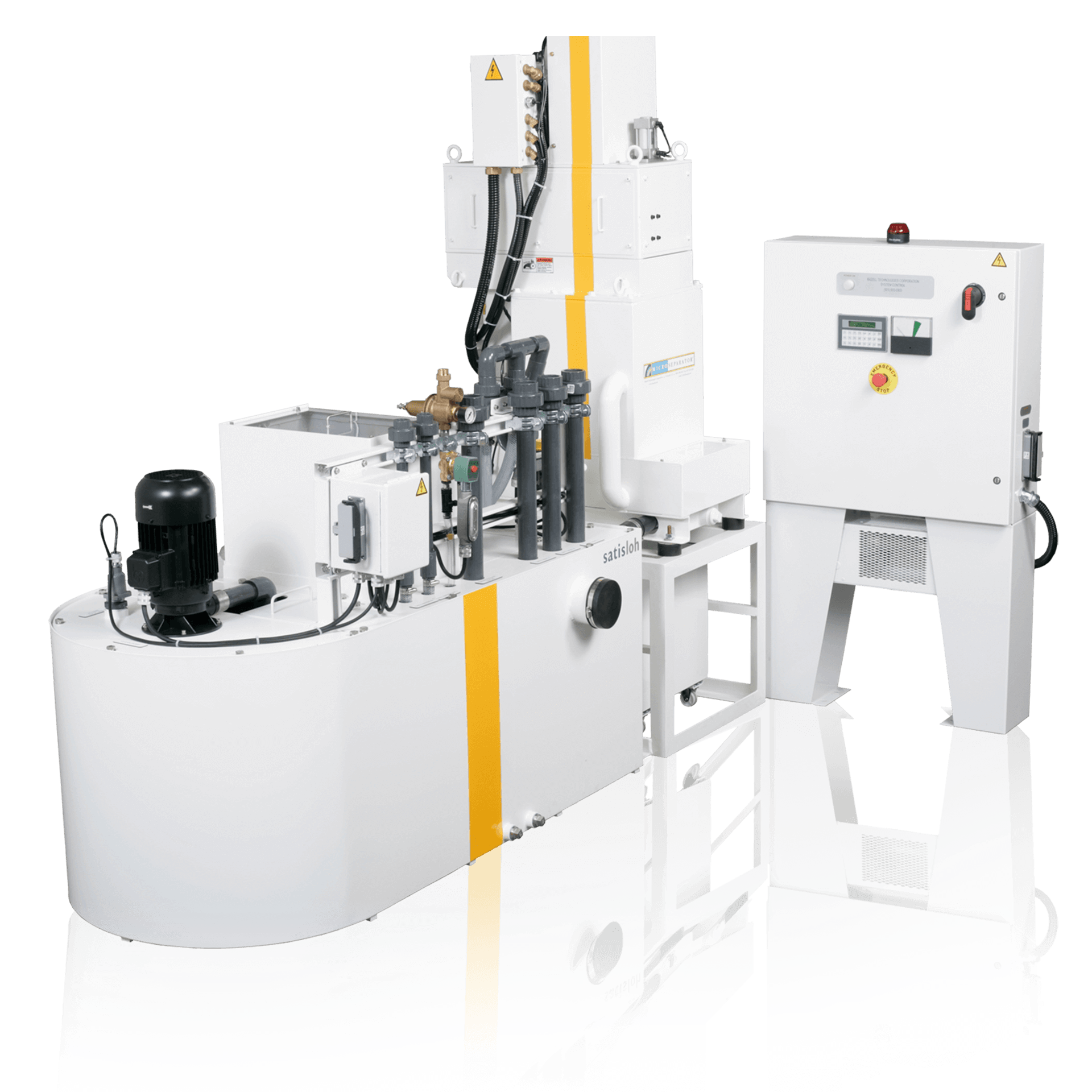

  • Microseparator® HC3 & HC3 Plus – Automated coolant cleaning system for up to 3 generator, organic lens materials only. Processes debris from up to 300 lenses per hour. Designed for operation remote from generators for optimum use of surfacing lab space. Can be up to 20 meters (98 feet) away from generator.
  • Microseparator® HC6 & HC6 Plus – Automated coolant cleaning system for mass manufacturing environments for up to 6 high throughput lens generators, organic materials only. Processes debris from up to 600 lenses per hour. Designed for operation remote from generators for optimum use of surfacing lab space. Can be up to 50 meters (164 feet) away from generator.
  HC3 HC6 HC6 Plus
Supported Generators Up to 3 Up to 6 Up to 6
Required Pump station 1 per generator 1 per generator 1 per generator
Chip Compactor or Chip Separator with tank 1 per generator (optional) 1 per generator (optional) 1 per generator (optional)
WEIMA briquette TH600 Vario 1 per 2 HC3 1 per HC6 1 per HC6 Plus
WEIMA briquette TH800 Vario - 1 per 2 HC6 1 per 2 HC6 Plus

Tech Specs

Productivity:

HC3 Up to 300 lenses/hour
HC3 Plus Up to 300 lenses/hour (recommended when material mix is mostly CR)
HC6 & HC6 Plus Up to 600 lenses/hour

Lens material: All standard organic materials
Dimensions (wxdxh):

HC3 1334 x 2729 x 2127 mm / 52.5 x 107.5 x 83.7 inches
HC3 Plus 1300 x 2814 x 2454 mm / 51.2 x 110.8 x 96.6 inches
HC6 3300 x 3400 x 2728 mm / 134 x 130 x 107 inches
HC6 Plus 3472 x 3627 x 2885 mm / 137 x 143 x 114 inches

Weight:

HC3 943 kg / 2079 lbs
HC3 Plus 1515.5 kg / 3341 lbs
HC6 2730 kg / 6000 lbs
HC6 Plus 3265 kg / 7200 lbs

All technical data subject to change without notice. Verify details with Satisloh.
